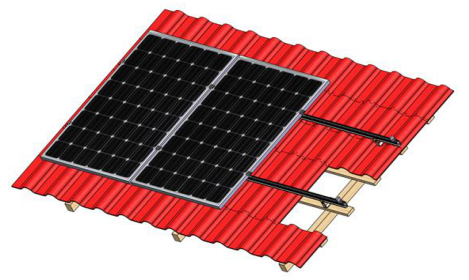

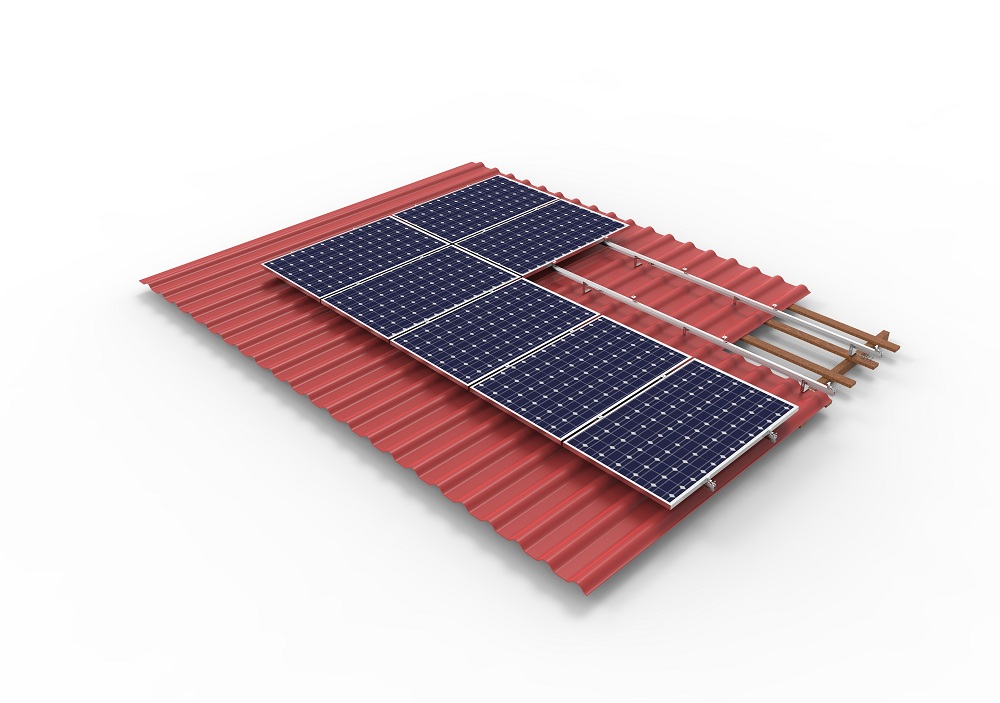

Tile Roof Mounting Solution
TSDsolarpitchedroofmountingsystemhasgreatflexibilityandextremelysuitablefor rooftopsolarsystembothincommercialandresidentialhouse.Theinnovativerailway andDshapeblockdesignshavemadetheinstallationeasierandfaster.Its preassemblyandcustomizedsolutionshasbeentime-savingandcost-efficient.
Specification
Maxwindcapacity:45m/s
Maxsnowcapacity:0.8KN/m2
Spanrange:0.1-1.8m
Standardlengthofblock:40mm
Designstandard:AS/NZS1170,ASCE7-05,DIN1044
Performance parameter
Installationsite:tileroof
Mainmaterial:AL6005-T5/SUS304
Fastenermaterial:SUS304
Applicablemodules:frameorframeless
Componentarrangement:horizontal/vertical
Warranty: 10 years

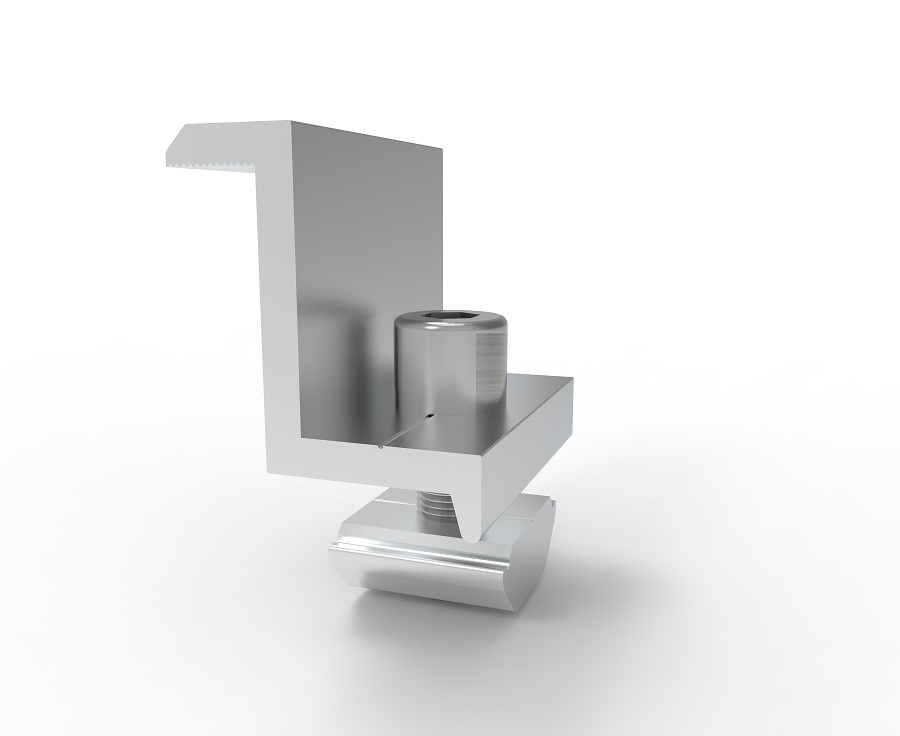

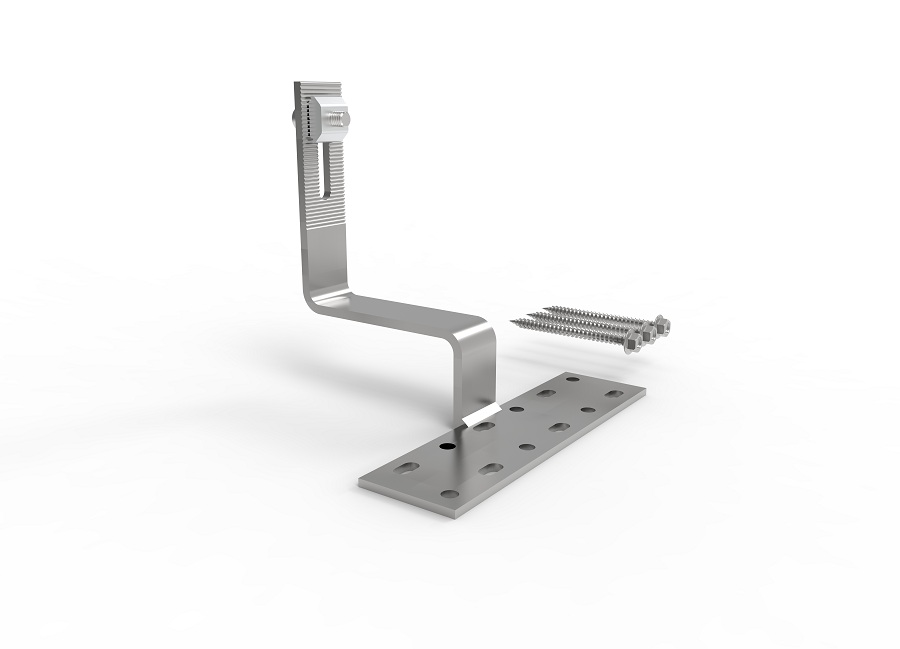

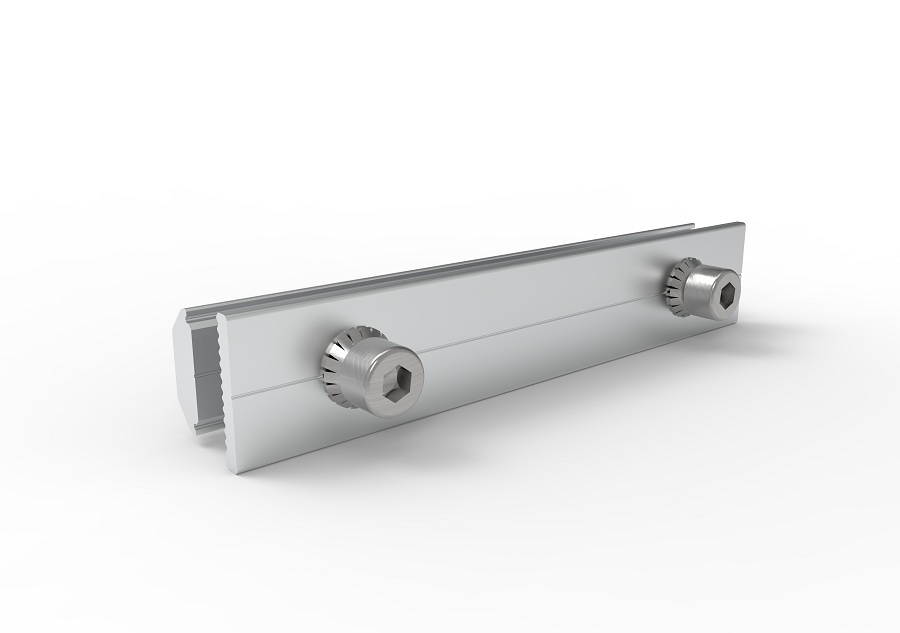

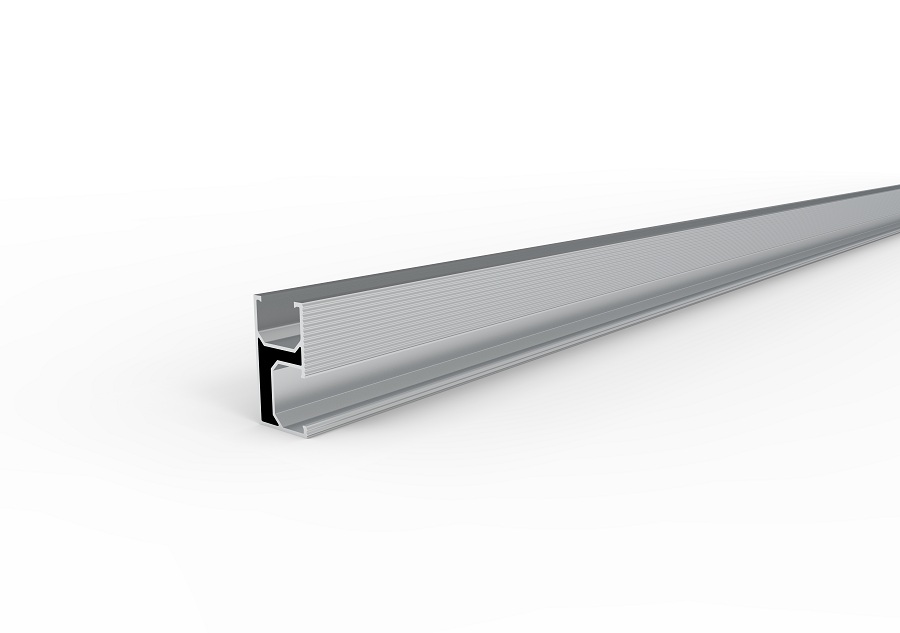

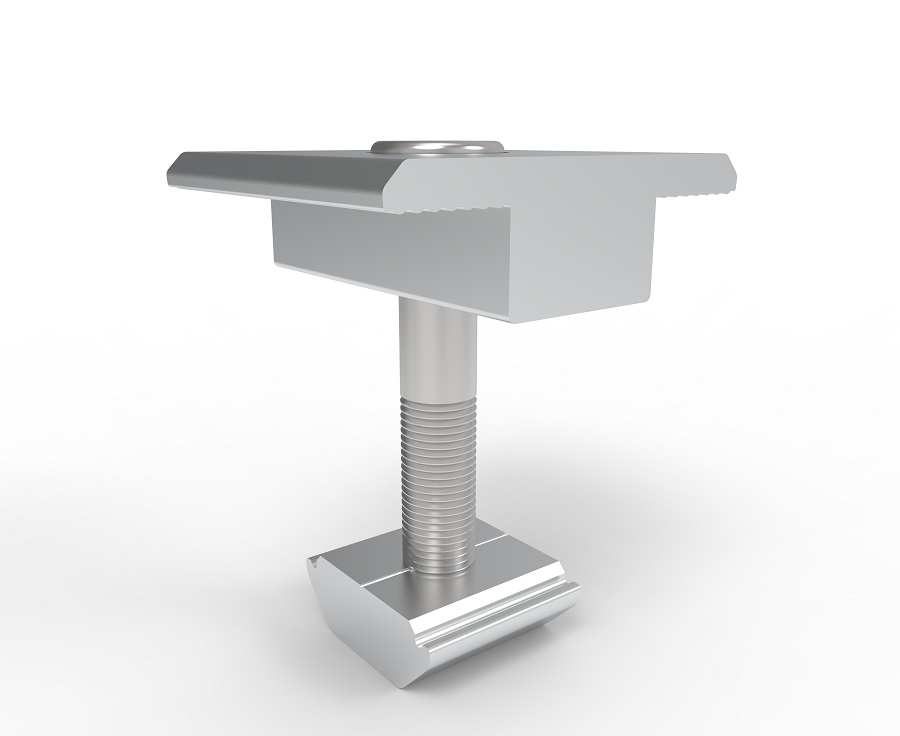

Bracket System Components
Product Features
- Easy installationWell-designed clips can be mounted to the track from any position. The product is pre-installed and shipped from the factory. There is no need to cut and weld on site when installing the bracket. There are fewer on-site installation procedures, which effectively improves the installation efficiency.
- Strong compatibilityThe product has innovative track and D-type block design, making installation more convenient and fast. Highly pre-assembled and custom solutions save your installation time and costs.
- Safe and reliableMade of high-quality aluminum alloy and stainless steel to prevent corrosion and oxidation; recycling, green and environmental protection. The overall structure fully considers the load-bearing, wind-resistant, anti-snow and other factors to ensure safety and reliability.

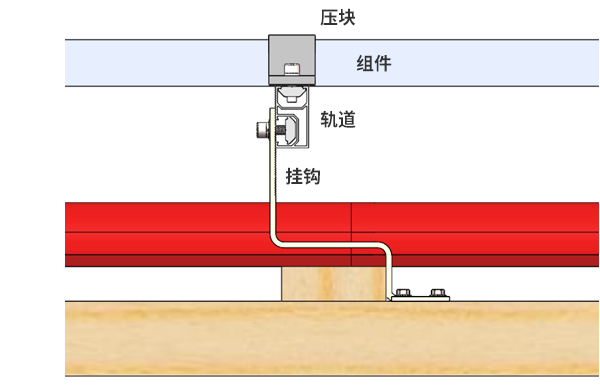

Installation instructions
Installation Guide
Step 1: remove the tile Step 2: install the hook
Step 3: install the rail Step 4: install panels
