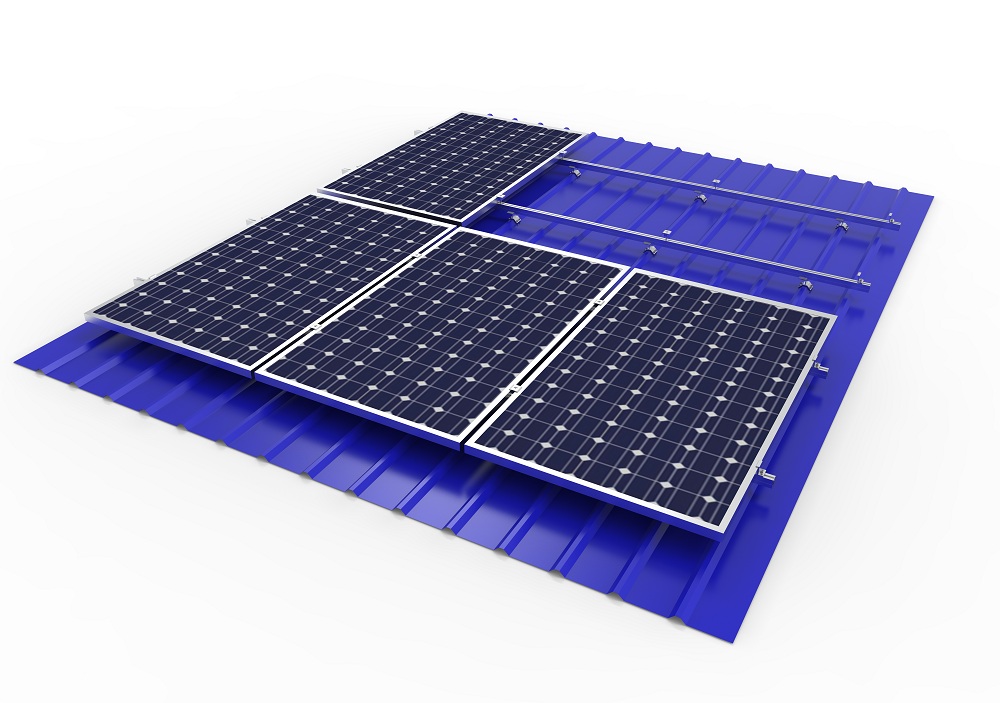

Tin Roof Trapezoidal Mounting Solution
Trapezoidal solar mounting system is widely used in large scale warehouse and workshop tin rooftop. Self-drilling screws are applied to fasten the clamps and the tin roof, then fasten the solar panels onto the rail with end and mid clamps. This system is structural efficient and easy installed which is time saving and, cost-efficient and durable.
Specification

Max wind capacity:45m/s

Max snow capacity:0.8KN/m2

Span range:0.1-1.8m

Standard length of block:40mm

Design standard:AS/NZS1170, ASCE 7-05, DIN1044

Performance parameter

Installation site: tin roof

Main material:AL6005-T5 / SUS304

Fastener material:SUS304

Applicable modules:frame or frameless

Component arrangement: horizontal / vertical

Warranty:10 years

Product Features

  • Easy installation
    Well-designed clips can be mounted to the track from any position. The product is pre-installed and shipped from the factory. There is no need to cut and weld on site when installing the bracket. There are fewer on-site installation procedures, which effectively improves the installation efficiency.
  • Strong compatibility
    The bracket system can meet the installation requirements of different specifications of PV modules. At the same time, it is compatible with the different arrangement of components.
  • Safe and reliable
    The system bracket is made of high quality aluminum alloy and stainless steel to prevent corrosion and oxidation. The product can be recycled to reduce environmental pollution. The overall structure fully considers the factors of load bearing, wind resistance, snow resistance, earthquake resistance, etc., and has been calculated and tested to ensure safety and reliability.

Installation instructions

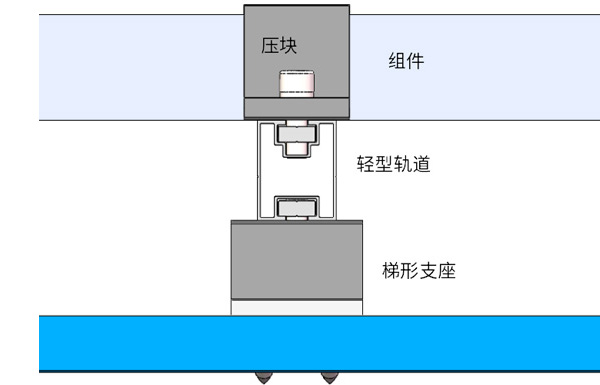

Installation Guide


image.png image.png

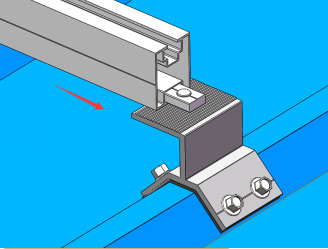

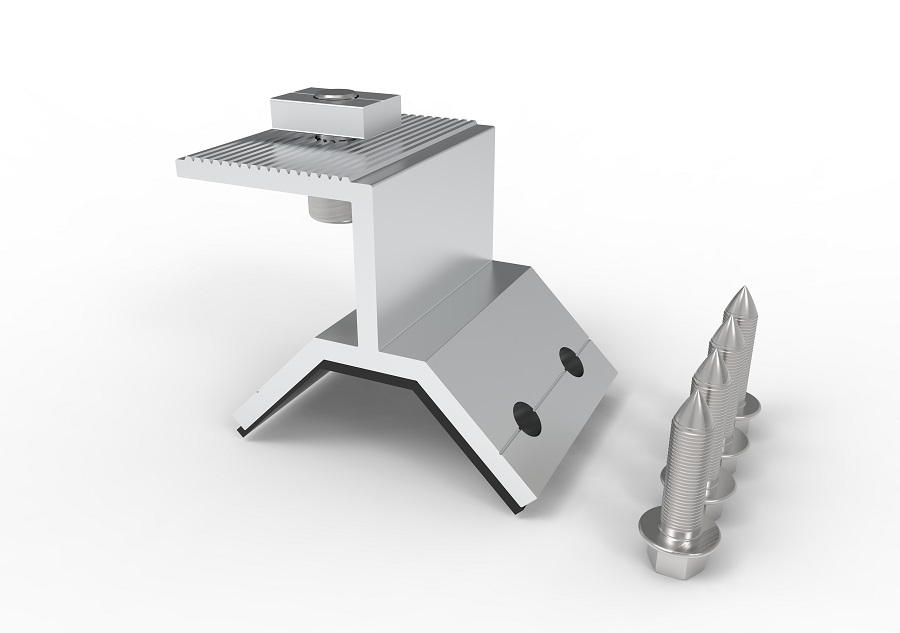

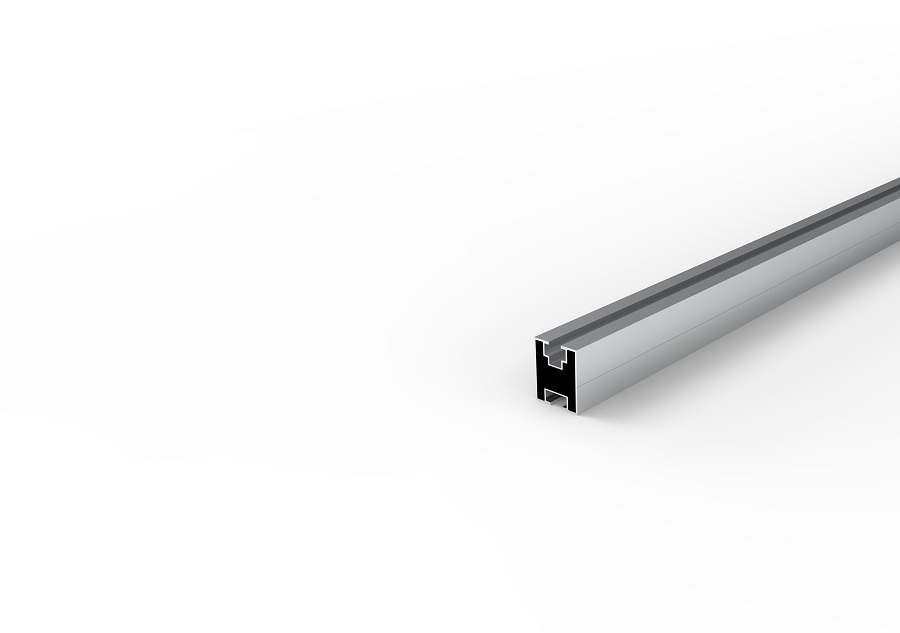

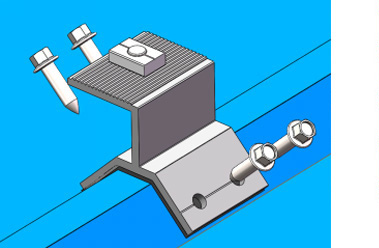

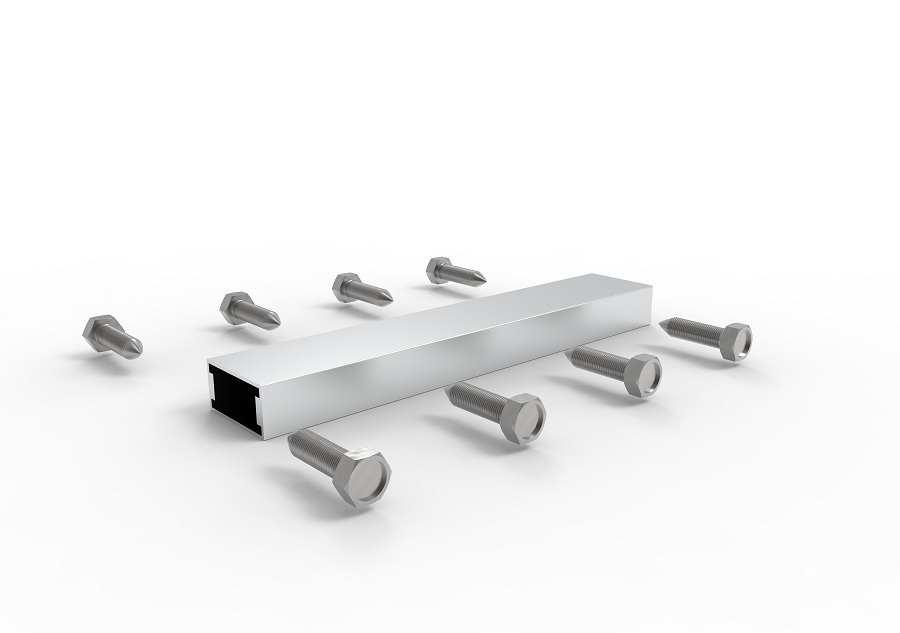

Step 1: fasten the clamp with 4 self-drilling screws              Step 2: install the light rail


1.jpg             1.jpg

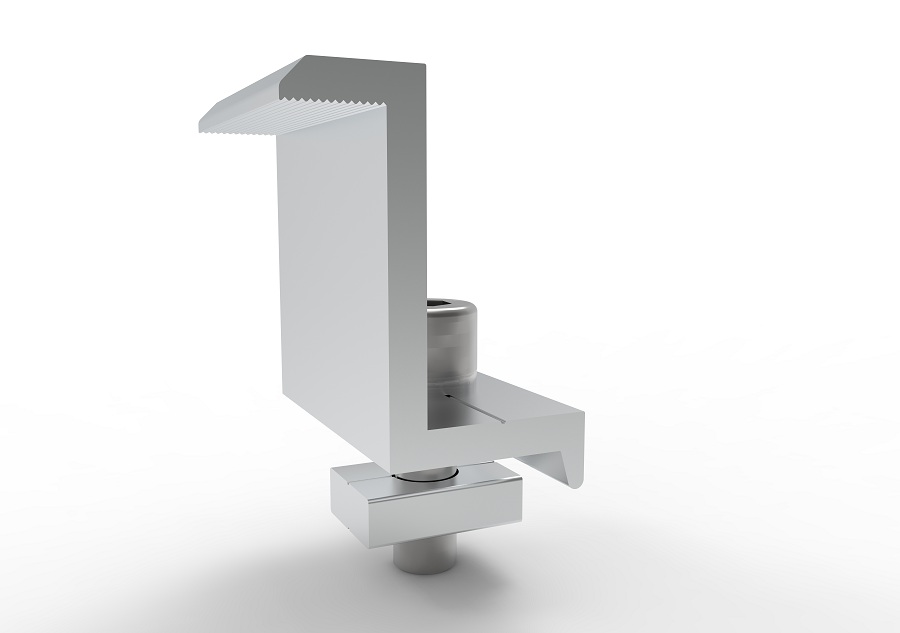

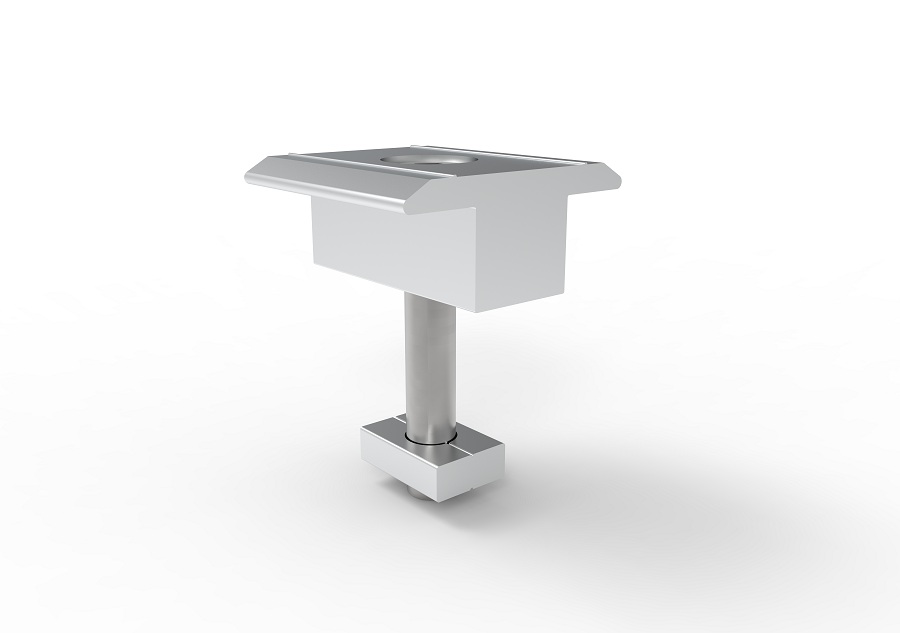

Step 3: slide the end and mid clamps into the rail                Step 4: fasten panels with mid and end clamps
